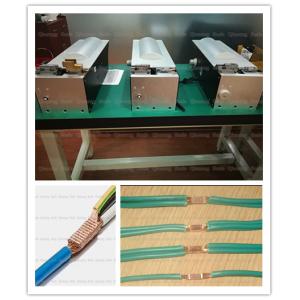

Copper Welder by 20Khz Ultrasound without Extra Splicer Materials for Join Process
Description:
Ultrasonic wire harness welding machine is suitable for welding different terminals such as terminal blocks, automobile wiring harnesses and battery pack leads. It adopts intelligent control mode and covers modes such as time, energy, power and segmentation. It has many control functions such as counting, historical data storage, and curve analysis. The precise and reliable electrical connection in automotive wiring harnesses is a decisive prerequisite. Ultrasonic wire harness welding ensures good electrical conductivity of the wire connections. Ultrasonic metal welding belongs to the friction welding process. When the synchronous pressure is combined, the contact surface of the welding material melts instantaneously, and a new molecular chain is generated, and molecular bonding occurs, which is close to the strength of the raw material.
Parameters:
| Item No | QR-X2020A | QR-X2030A | QR-X2040A |
| Power | 2000W | 3000W | 4000W |
| Welding Area | 0.5-16mm2 | 0.5-20mm2 | 1-30mm2 |
| Air Pressure | 0.05-0.9MPa | 0.05-0.9MPa | 0.05-0.9MPa |
| Frequency | 20KHZ | 20KHZ | 20KHZ |
| Voltage | 220V | 220V | 220V |
| Weight of horn | 18KG | 22KG | 28KG |
| Dimension of Horn | 530*210*230mm | 550*220*240mm | 550*250*240mm |
| Generator Size | 540*380*150mm | 540*380*150mm | 540*380*150mm |
Advantage:
1. Circuit characteristics: new digital circuit, stable performance, strong welding ability, self-contained energy feedback, real-time monitoring of welding quality. The matching of the whole machine has reached the national advanced level.
2. Welding mode: Time, energy, continuous, segment and other working modes.
3. Protection system: Machine fault records and other protections, such as: rectification, temperature, transducer resistance error, power, speed, air pressure, pressure, IGBT temperature, rectification current, displacement, transducer current, transducer The voltage, welding power is too high or too low, and the energy is too low, etc., all play a real-time monitoring and protection.
4. Data reading: It is convenient for users to save multiple sets of welding process parameters and call them directly when they are used again.
